WATT&WELL -- Tier 1 Downhole Electronics Supplier
马达控制器（175°C）及高温电源模块

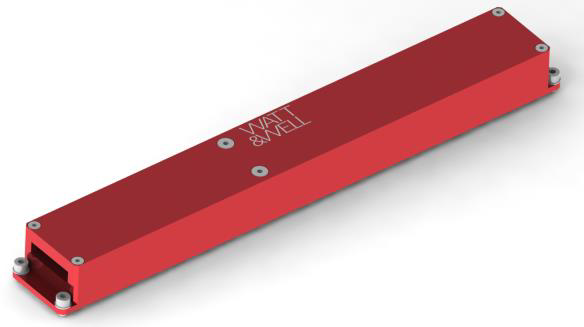

Nar Motion is our innovative high-temperature motor controller series, providing optimal operation and high-reliability in harsh environment. Typical applications are Downhole Tools for Oil&Gas and Geothermal markets. Nar Motion M is the cost-effective version for Medium Power applications.
Standard version includes pre-programmed firmware with more than hundred of parameters to tune the controller.
-MBD version includes firmware as a provided Simulink Model. The control loop is easy to customize via a Simulink Model and Embedded Coder code generation.
-Extreme temperatures from -40°C/°F to 175°C/347°F with a maximum survival temperature up to 200 °C/392 °F
-Random vibration up to 20G rms, 50-500 Hz
-Repetitive shocks (up to 500 G)
-Typical Power: 200 W to 3 kW
-Bus Voltage: up to 600 V
-Phase Current: up to 6 A RMS

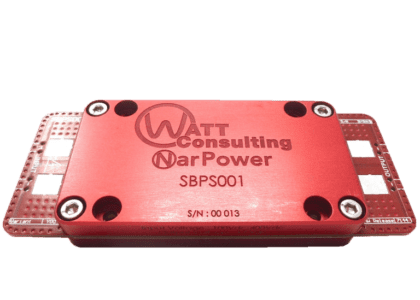

Power Supplies 高温电源模块
Efficiency, integration, and high reliability make our power supplies electronics equipment the globally recognized products for downhole applications: drilling tools such as Rotary Steerable System (RSS), Measurement While Drilling (MWD), Logging While Drilling (LWD), and wireline tools as well. High temperature DC/DC power converter that can handle a wide voltage input range for a regulated low voltage output. It is designed to provide steady low voltage output 12 V from a high non-regulated voltage range (100 VDC to 400 VDC). Its performance and features make it a must have for every system starting with a high voltage input
